Heat shrink braided sleeve
2024/7/23 viewers
- BrandDEEM
- TypeDM-HS
Introduction
Applications

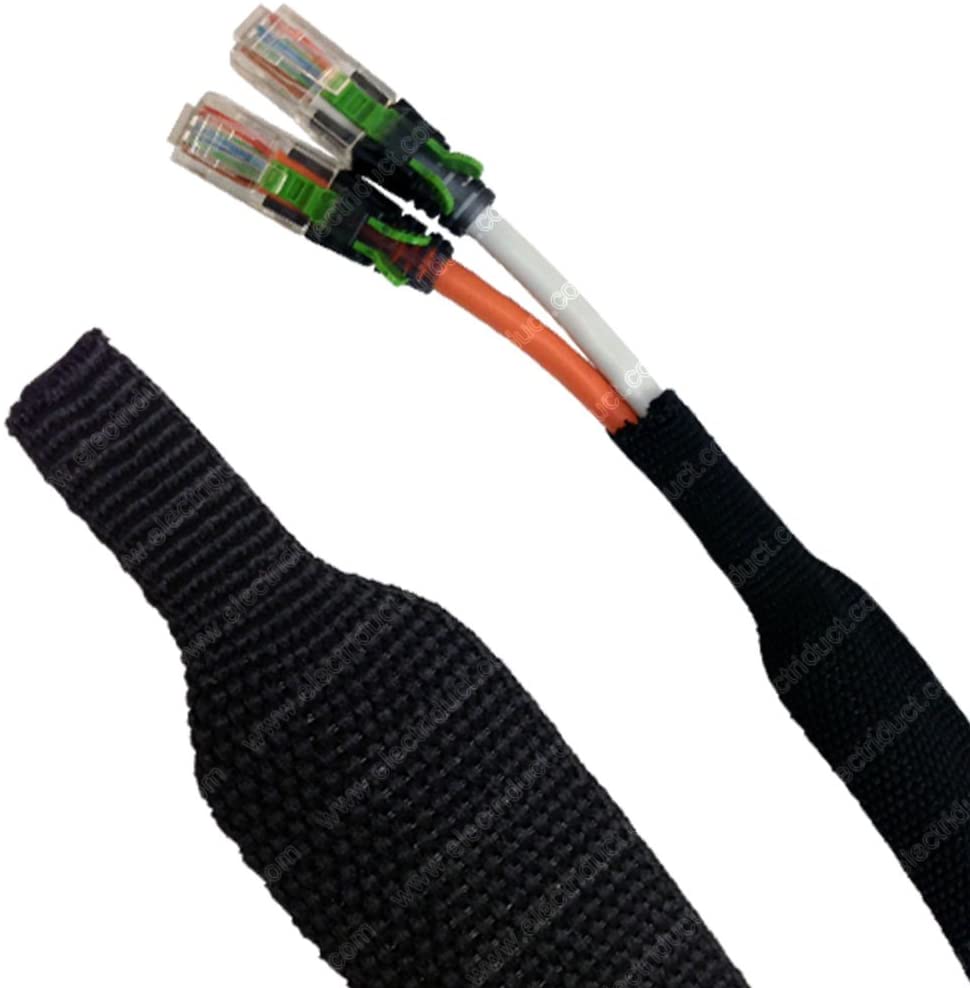

Flexible, braided cloth fiber tubing, designed primarily to provide outstanding
mechanical abrasion protection for components such as rubber hoses, plastic
pipes and harness wiring bundles. Also suitable for noise and rattle suppression.
Features

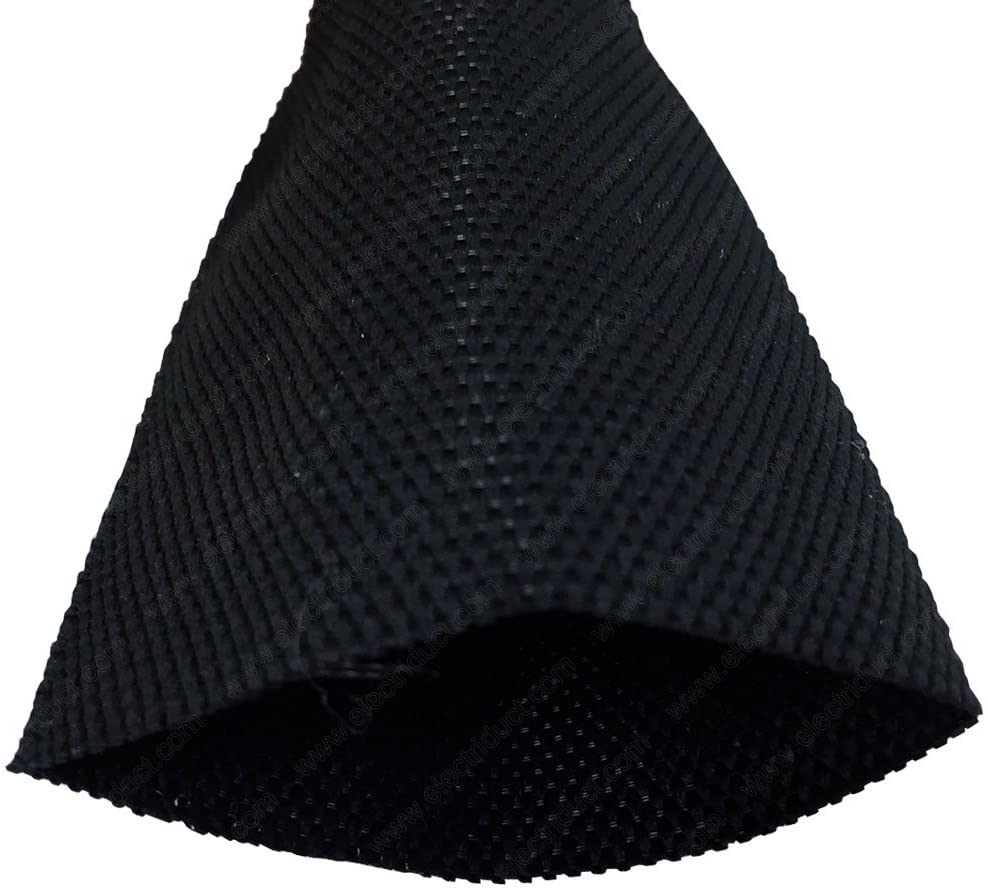

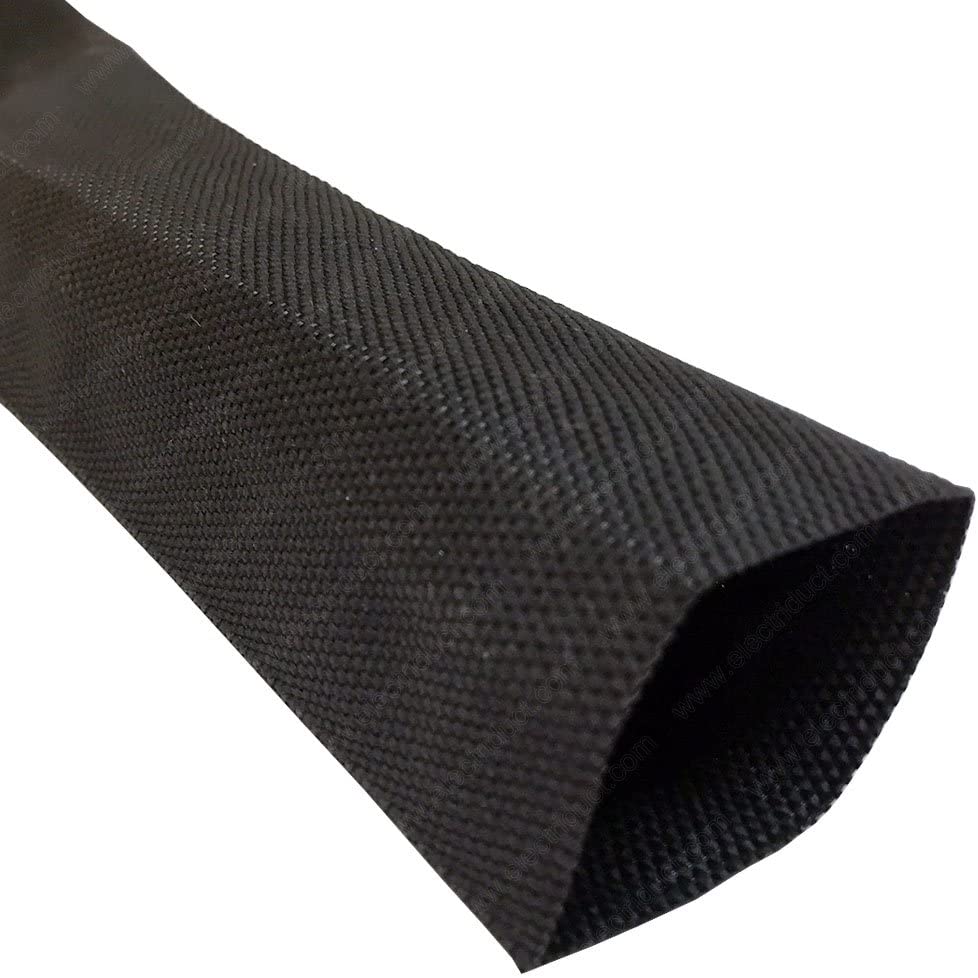

Woven fabric construction.
Polyolefin construction
Various
Operating temperature : -40°C to +125°C
Shrink ratio: 2:1
| Property | Test Method | Typical Data |
| Operating temperature | UL224 | -40℃ to+125℃ |
| Operating temperature range | ASTM D2671 | 110℃ |
| Abrasion resistance (200g load,144000 cycles) | 23℃ by 168hrs | No damage to underlying hose |
| 158℃ by 168hrs | No damage to underlying hose | |
| Low Temperature flexibility | ASTM D2671 | -40°C/4 hrs, no cracking |
| Cold impact | 200g weight from 100mm at -40℃ | no cracking |
| Thermal shock | 00 cycles between -40°C and 125℃ | No deterioration in abrasion resistance at 80°C |
| Fluid resistance | 24hrs immersion at 23℃ | No deterioration in abrasion resistance at 80℃ |
|
Size
As Supplied (mm)
|
Size
After Recovery (mm)
|
Standard Length
m/spool
|
| Inside Diameter Min. (D) | Inside Diameter Max. (d) | |
| 12 | 6 | 100 |
| 20 | 10 | 100 |
| 25 | 12.5 | 50 |
| 30 | 15 | 50 |
| 40 | 20 | 50 |
| 50 | 25 | 50 |
| 60 | 30 | 50 |
| 70 | 35 | 50 |
| 80 | 40 | 50 |
| 90 | 45 | 50 |
| 100 | 50 | 50 |
Spools as standards. 1 nr or 1,22 m. sticks, special spool Lengths or cut pieces available on request
Special sizes (up to 7 inches) and other
Special sizes (up to 7 inches) and other special features available on request
