Applications

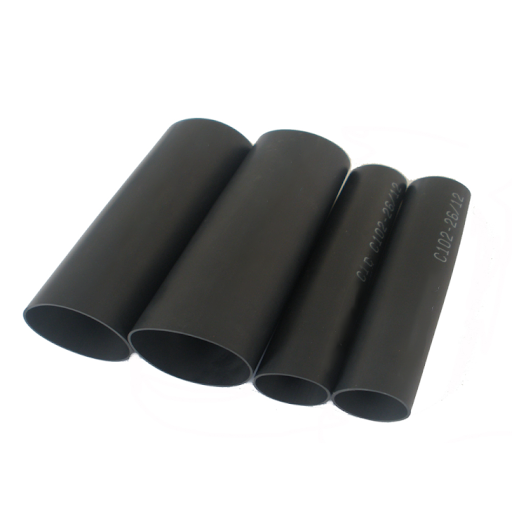

Ideal for external insulation and protection of power cable
Termination and joint up to 25KV.
Features
Cross-linked polyolefin.
Effective electrical stress control tubing
Voltage class: 5-25KV
Operating temperature: -55°C to +105 °C
Various
Shrink temperature: 125 °C
Standard color: Black.

Technical Data

Property		Test Method	Values
Physical	Tensile strength	ASTM D2671	≥14 MPa
	Elongation at break	ASTM D2671	≥350%
	Tensile strength at aging(136°C/168hrs)	ASTM D2671	≥10 MPa
	Elongation at break at aging(136°C/168hrs)	ASTM D2671	≥250%
	Thermal  endurance	IEC216	105℃
	Water absorption (23°C/336hrs)	ASTM D570	≤1%
	Density	ASTM D2671	1.3-1.4
	Low Temperature flexibility(-40°C/4hrs)	ASTM D2671	No cracking
	Heat  shock(200°C/30mins)	ASTM D2671	No spliting
Electrical	Dielectric constant	IEC250	≥20
	Volume resistivity	ASTM D2671	≥1010Ω.cm
	Loss factor (50Hz)	IEC250	1.0 max(1000V)
	Dielectric constant stability	15000hrs	≥15

Dimensions

As Supplied(mm)	After Recovery (mm)		Standard length
Inside Diameter Min. (D)	Inside Diameter Min. (D)	Wall Thickness Min. (WT)	m/roll
16	8	1.8	1.22
20	10	1.9	1.22
26	12	2.3	1.22
30	15	2.4	1.22
35	17	2.4	1.22
45	20	2.6	1.22
50	25	2.7	1.22
66	30	3.1	1.22
95	45	3.4	1.22

*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
